10 ton knuckle boom articulating crane

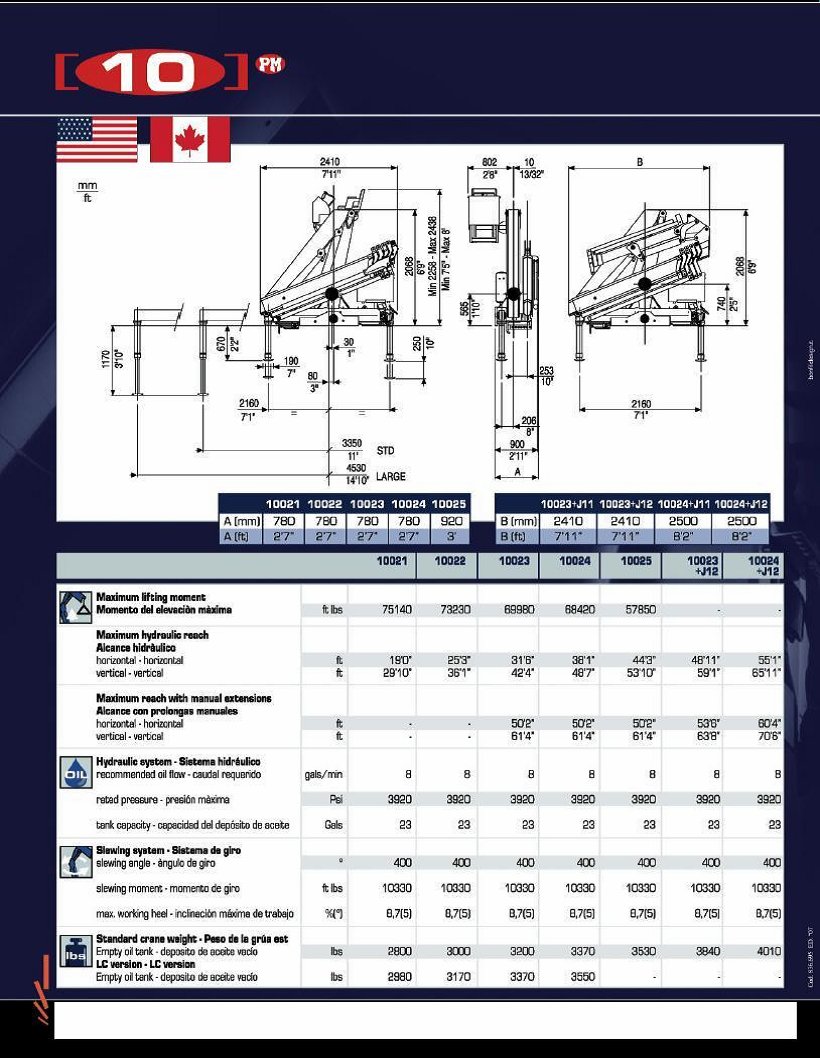

Lift and reach for every 10 ton model, plus the brochure.

PM builds the 10 ton knuckle boom crane in several boom configurations, so the choice is really about reach: a shorter boom lifts more close in, a longer one puts less weight further out. The models below are the ones we supply and service.

10 ton models, lift and reach

• Model 10021: max lift 3,792 lb, max reach 18 ft 4 in
• Model 10022: max lift 2,535 lb, max reach 24 ft 7 in
• Model 10023: max lift 1,808 lb, max reach 30 ft 10 in
• Model 10024: max lift 1,323 lb, max reach 37 ft 3 in
• Model 10025: max lift 970 lb, max reach 43 ft 6 in

What this size is usually doing

A 10 ton PM is a truck-mounted articulating crane: it folds behind the cab, so the deck stays usable, and it reaches over an obstacle instead of around it. Ours go out on drywall and wallboard work, precast, roofing, poured wall and general construction.

Not sure which size you need?

Tell us the heaviest thing you lift and how far out you have to place it, and we will tell you which crane covers it. Getting this wrong is expensive in both directions.
